Cinema 300

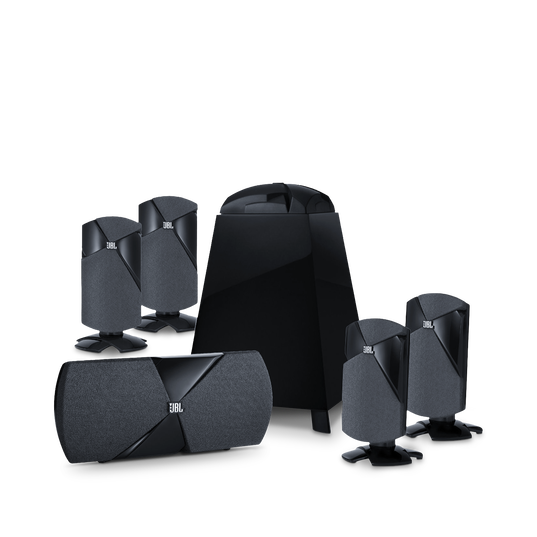

5.1-channel surround-sound system with four satellite speakers voice-matched to the centre-channel speaker, plus a 150-watt subwoofer

Don’t let the size fool you.

Astonishingly small, the JBL® Cinema 300 home theatre speaker system provides a feel-it-in-your-chest movie theatre experience. The combination of a dual-midrange centre-channel speaker, four matching satellite speakers and a 150-watt subwoofer creates a powerful home theatre experience from a deceptively small package. The JBL engineering that creates the speaker systems used in the world’s most amazing movie theatres now delivers the same quality of surround sound for a compact home system. From dialogue that is crisp and accurate replayed from voice-matched centre and satellite speakers to floor-rumbling bass via a 150-watt subwoofer, the JBL Cinema 300 system makes your living room feel more like a top-of-the-line movie house.

Item# CINEMA 300/230

General Specifications

Series Cinema Series
Finish Black
Speaker Enclosure Type Sealed

Audio Specifications

Satellite Sensitivity (2.83V@1m) 86dB
Subwoofer_Frequency Response (-6dB) 32Hz-150Hz
Satellite Maximum Recommended Amplifier Power 100W
Satellite Crossover Frequencies 3.7kHz
Speaker Crossover Frequencies 3.7kHz
Subwoofer Maximum Recommended Amplifier Power 150W
Speaker Maximum Recommended Amplifier Power 100W
Satellite Nominal Impedance 8 ohms
Speaker Sensitivity (2.83V@1m) 89dB
Subwoofer Crossover Frequency 50Hz-200Hz (variable)
Speaker Nominal Impedance 8 ohms

System Specifications

System Weight (lb) 33.2
Number of Channels 5.1
Subwoofer Power Requirement 120V/60Hz, 150W (US); 220V/50Hz, 150W (EU)
System Frequency Response (-6dB) 32Hz–20kHz
System Weight (kg) 15.45
Power Requirement 120V/60Hz, 150W (US); 220V/50Hz, 150W (EU)
Power Consumption (Full Power/Idle) 300W (2.5A@120V) peak; <1W (8mA@120V) standby

Subwoofer Specifications

Subwoofer Controls Volume, crossover frequency, phase
Subwoofer_Enclosure Type Ported (down-firing)
Subwoofer Low-Frequncy Transducer 8" (200mm) cone (down-firing)
Subwoofer Connections Left and right RCA line-level inputs, LFE inputs

Speaker Specifications

Speaker Wall-Mount Capable Yes
Speaker High-Frequency Transducer 1" (25mm) titanium-laminate dome, video-shielded
Speaker Low-Frequency Transducer Dual 3" (75mm) PolyPlas cones, video-shielded


Speaker Depth (mm) 86
Satellite Depth (in) 3-3/8
Speaker Depth (in) 3-3/8
Speaker Weight (lb) 3.2
Speaker Width (in) 12
Speaker Height (in) 4-7/8
Subwoofer Depth (in) 14
Subwoofer Height (in) 19
Speaker Width (mm) 305
Subwoofer Width (mm) 355
Speaker Weight (kg) 1.45
Subwoofer Width (in) 14
Subwoofer Weight (kg) 10
Subwoofer Weight (lb) 22
Subwoofer Depth (mm) 355
Satellite Height (mm) 235
Satellite Width (in) 4-3/4
Satellite Width (mm) 121
Satellite Depth (mm) 86
Satellite Weight (lb) 2
Satellite Weight (kg) 0.9
Satellite Height (in) 9-1/4
Speaker Height (mm) 124
Subwoofer Height (mm) 483

Satellite Speaker Specifications

Satellite Enclosure Type Sealed
Satellite High-Frequency Transducer 1" (25mm) titanium-laminate dome, video-shielded
Satellite Low-Frequency Transducer 3" (75mm) PolyPlasTM cone, video-shielded

Control and Connection Specifications

Connections (Subwoofer) Left and Right RCA line-level inputs, LFE inputs; (Satellite/Center Speakers) Push-spring terminals
Click here for a complete list of all specs for this product

Spec Sheet (EN)

English 248 KB
  • 4 satellite speakers
  • 1 centre-channel speaker
  • 1 powered subwoofer
  • 1 RCA cable to connect the subwoofer to the AVR
  • 3 15' (4.5m) speaker wires for left, centre and right satellite speakers
  • 2 30' (9.0m) speaker wires for surround speakers
  • Shelf-mounting hardware for centre and satellite speakers
  • 1 Owner’s Manual
