JBL 8128

JBL 8128 (Two Pair)

8-inch, Full-range, In-Ceiling Loudspeaker

Variations
For Bulk Enquiry: Click Here

Features

Clear, high-fidelity performance

Clear, high-fidelity performance

At a cost effective price point

High sensitivity drivers

High sensitivity drivers

Deliver maximum sound levels using minimal amplifier power

Dog-ears

Dog-ears

For easy blind mount Installations

6W Transformer

6W Transformer

For use of 70V / 100V Distributed Lines

Open-back design

Open-back design

For applications not requiring an in-ceiling backcan

Specs & Downloads

Item# 8128

Product Description

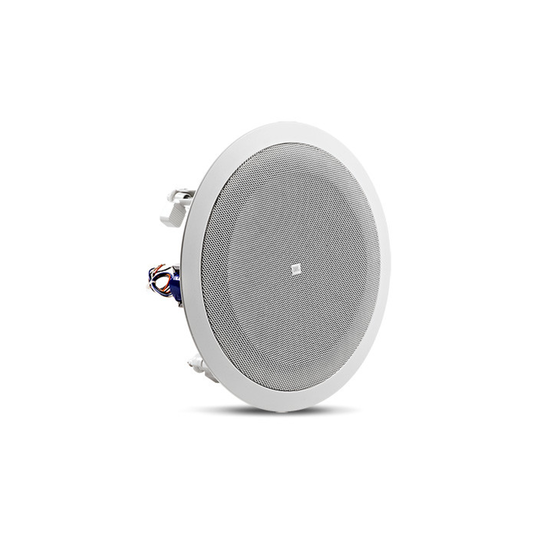

8-inch, Full-range, In-Ceiling Loudspeaker

The 8128 is a 8-inch, full-range, cost-effective loudspeaker for commercial applications. The 8128 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a back can for installation.

General Specifications

Component 8 in (200 mm), full-range driver
Frequency Range 50 Hz – 16 kHz
Sensitivity 97 dB (1 kHz – 8 kHz), 1W, 1M
Coverage 90° conical
70V/100V Taps 6W, 3W, 1.5W (0.75W at 70V only)
Termination Bare wires
Nominal Driver Impedance 8 ohms
Driver Power Capacity 25 W
Plenum Usage Not intended for use in return air plenums
Included Accessories Sculpted Grille
Optional Accessories MTC-8124C C-ring, MTC-Rail tile rails

Dimensions

Diameter 11.3 (287mm)
Depth 4.1in (105mm)
Weight 3lb (1.4kg)
Cutout Dimension 260 mm diameter (10.1 in)

What's in the box?

  • 4 x 8128 Ceiling Speakers
  • 4 x Sculpted Grilles
