HDI-1600
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1600 delivers exceptional performance from a compact enclosure. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) Advanced Aluminum Matrix cone woofer for powerful dynamics and incredibly accurate sound reproduction. The accessory HDI-FS floor stands lift the speakers to their perfect height.
Promotions
Variations
Features

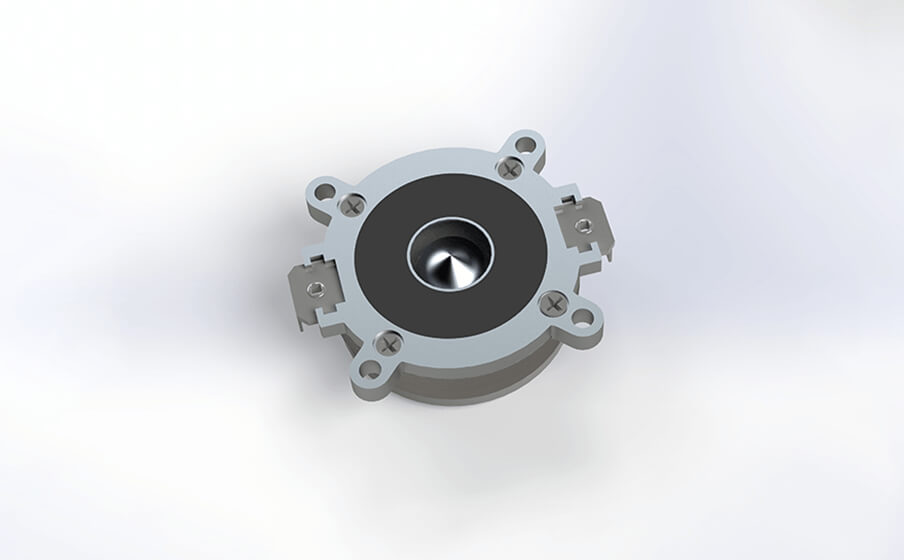

Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.
6.5" (165mm) Advanced Aluminum Matrix cast-frame woofers.
Choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Gray Oak wood veneers.
Rear-firing, computer-optimized flared port.

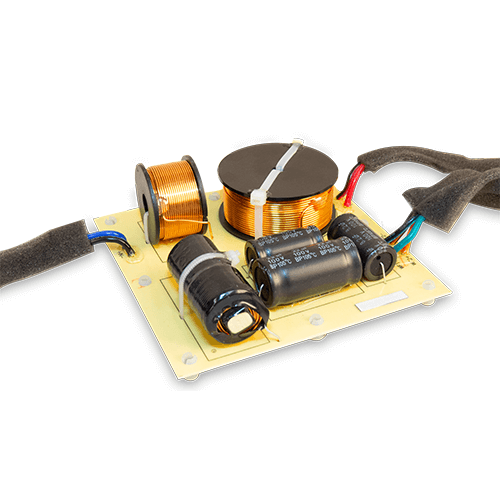

Advanced crossover network
Dual sets of gold-plated binding posts with shorting straps.
Black cloth, magnetically attached grille.
Recommended HDI-FS speaker stands (sold separately).
Specs & Downloads
Item#: JBLHDI1600GRO
Product Description
HDI-1600
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1600 delivers exceptional performance from a compact enclosure. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) Advanced Aluminum Matrix cone woofer for powerful dynamics and incredibly accurate sound reproduction. The accessory HDI-FS floor stands lift the speakers to their perfect height.
General Specifications
Enclosure Type
Bass-reflex design with rear-firing port
High Frequency Transducer
1-inch (25mm) Teonex compression driver
Low Frequency Transducer
6.5-inch (165mm) black Advanced Aluminum Matrix cone, cast frame woofer
Crossover Frequency
1900Hz
Sensitivity (2.83V @ 1M)
85dB
Nominal Impedance
4 Ohm
Recommended Amplifier Power
15W – 200W
Frequency Response
40Hz – 30kHz (-6dB)
Dimensions (H x W x D)
14.57 x 9.06 x 11.375” (370.0 x 230 x 288.9mm)
Net Weight
21.96 lbs (9.96kg)
Matching Stand
HDI-FS
