JBL JBLSUBBP8

BassPro 8

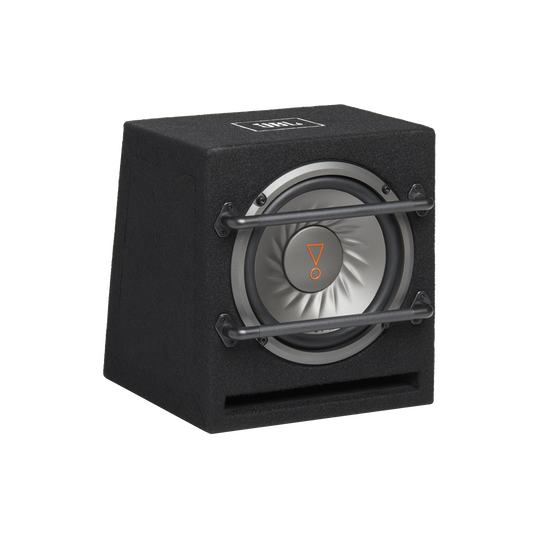

BassPro Series Powered 8” (200mm) Subwoofer System

Variations
For Bulk Enquiry: Click Here

Features

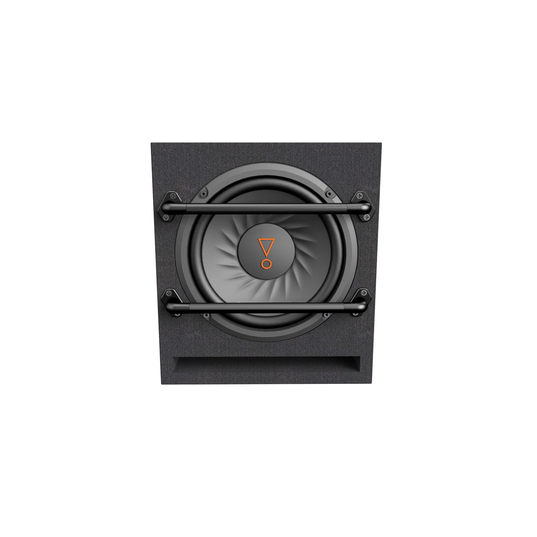

JBL BassPro 8 Slot-Port Enclosure

JBL BassPro 8 Slot-Port Enclosure

JBL's slot-port enclosure is engineered and "tuned" to the optimal frequency by the JBL engineering team. The enclosure material is MDF (medium-density fiberboard) to minimize resonances and unwanted ring. Lightweight but stiff polypropylene woofer cone provides clean reproduction and superior durability in an easy listening or high volume venue.

Built-in Class D 100 watts RMS amplifier

Built-in Class D 100 watts RMS amplifier

The JBL subwoofer system’s built-in amplifier provides electronics matched and optimized for woofer characteristics and enclosure acoustics. Class D operation also means the amplifier runs cooler and draws less current from the vehicle's electrical system.

JBL RBC Wired Remote

JBL RBC Wired Remote

The RBC Wired Remote (optional) is an easy installation and can be mounted for convenient volume adjustment from the driver's seat, which sells separately on JBL website.

Oversized Protection Bars

Oversized Protection Bars

The oversized protection bars project a "serious car audio enthusiast" statement, but more importantly they do an excellent job of protecting the speaker from accidental damage.

Harman Standard Reliability Testing

Harman Standard Reliability Testing

JBL speakers have to undergo a testing process that would destroy lesser speakers. JBL freezes them, bakes them, shakes them, blasts them with ultraviolet light and drives them at full power for days at a time.

JBL at an Affordable Price

JBL at an Affordable Price

This is JBL—the speaker and sound that has excited audio enthusiasts for over 70 years. And there's nothing better than riding with JBL sound.

Specs & Downloads

Item# JBLSUBBP8

General Specifications

Power Handling 100Wrms; 200W peak
Frequency Response 30Hz – 200Hz
Fuse 10A
Maximum Current Draw 9.5A
Quiescent Current Draw <0.5A 50mV – 16V Universal Interface
Crossover Frequency 60Hz–200Hz
Crossover Slope 12dB/octave
Bass Boost up to +9dB @ 60Hz
Dimensions (W x H x D1 x D2) 9-7/8" x 11-1/4" x 10-3/8" x 8”(250mm x 285mm x 263mm x 203mm)

What's in the box?

  • 1 x Powered Subwoofer Enclosure
  • 1 x Wire Harness with Connectors
  • 2 x Two-color JBL Brand Stickers
  • 1 x Quick Start Guide
