Type
Bass-reflex Loudspeaker System with Built-in Amplification, DSP,and Wireless Connectivity

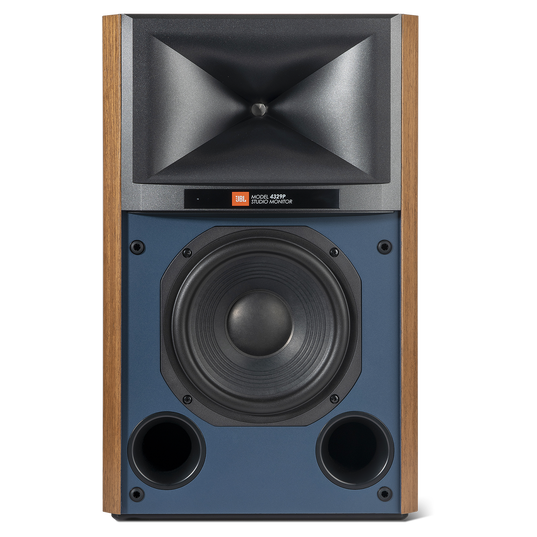

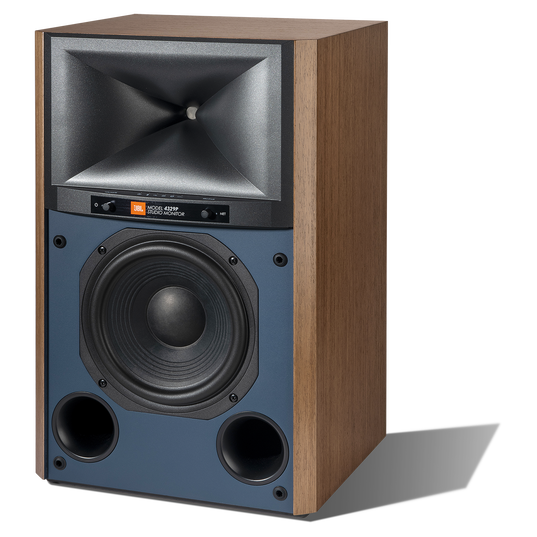

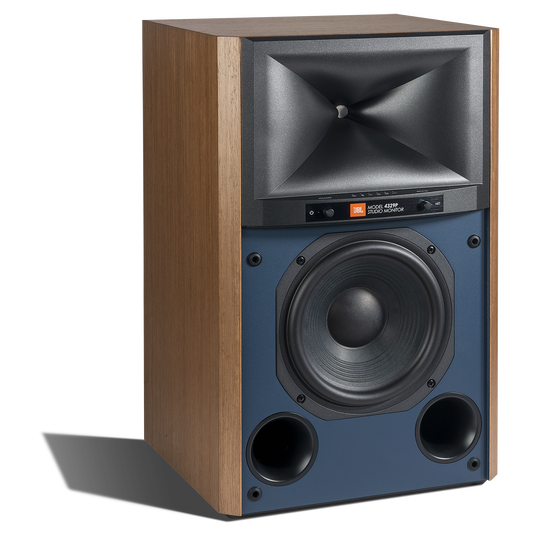

Low Frequency Drivers
JW200P-4, 8-inch (200mm) Pure-pulp Black Paper Cone Woofers with Cast-frames
High Frequency Drivers
2409H, 1-inch (25mm) Annular Ring, Teonex® Diaphragm Compression Drivers with Advanced HDI™ Geometry Horns
Amplifier Power
600W Class D System Power, 300W RMS per Speaker, (50W per HF Compression Driver + 250W per LF Woofer)
Audio Resolution
Up to 24-bit, 192 kHz (Digital Link connection between spks)
Audio Resolution
Up to 24-bit, 96 kHz (Wireless connection between spks)
Frequency Response
28 Hz - 25 kHz (-6 dB)
Crossover Frequency
1,675 Hz
Dispersion
90° Horizontal x 60° Vertical (2kHz to 15kHz)
Sound Controls
Front Panel
Wireless Inputs
WiFi streaming, Bluetooth 5.3

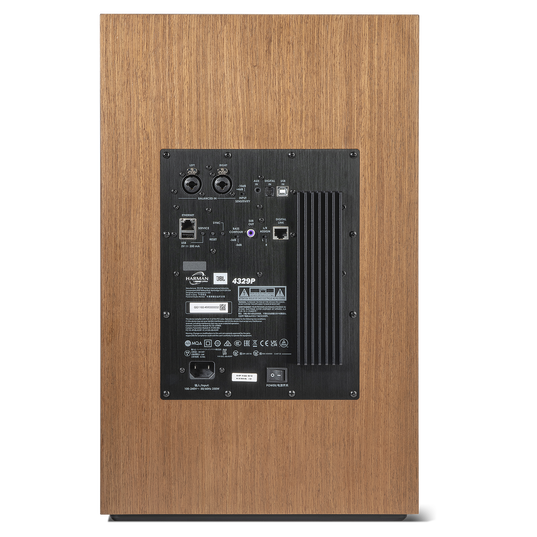

Wired Inputs (Analog)
XLR/¼" Combo and 3.5mm stereo
Wired Inputs (Digital)
Asynchronous USB-B and Toslink/Optical
Supported Digital Audio Sample Rates (PCM 2CH)
Streaming & Local Media - 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHzSPDIF - Up to 192kHzUSB-B - PCM 2-channel, up to 192kHzBluetooth - Up to 48kHz, aptX Adaptive up to 96kHz
Music Formats Supported (Local Media)
AAC / AIFF / ALAC / DSD64 (to PCM) / FLAC / MP3 / MP4 / MQA / OGG / WAV / WMA
Subwoofer Output
Autosensing w/ Auto-engage of 80Hz High Pass Filter

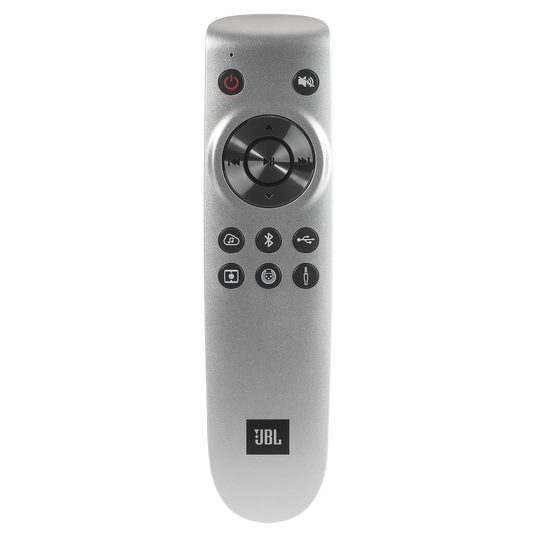

Remote Control Type
BTLE Wireless
Bluetooth Audio Version
5.3
Bluetooth Audio Profiles
SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)

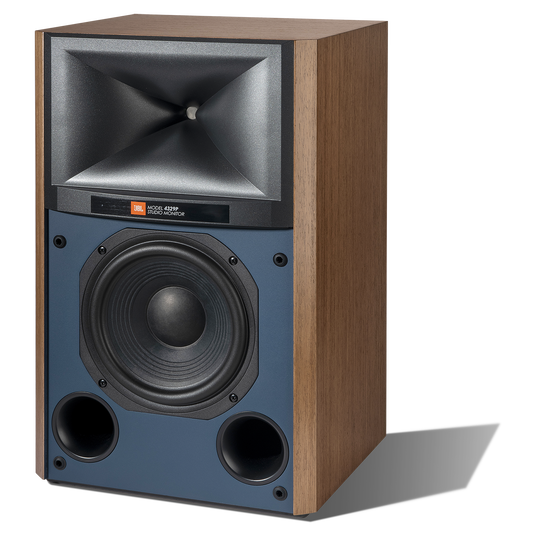

Enclosure
Bass-reflex Design with Dual Front-facing Ports, ¾" MDF Finished in Satin Walnut, Black Walnut, or White Aspen, Furniture-Grade Wood Veneer

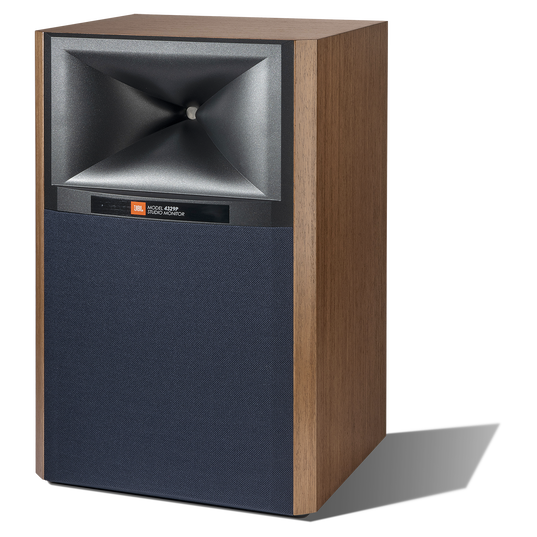

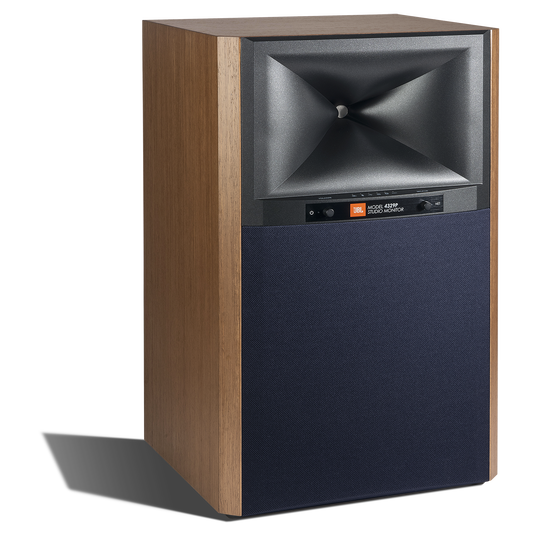

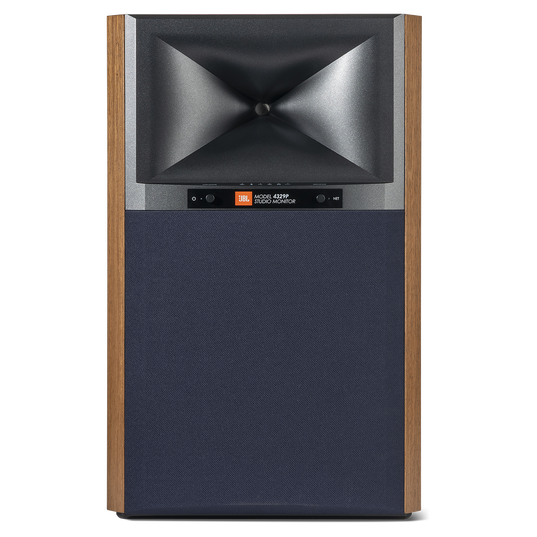

Grille
Dark Blue (with Walnut Cabinet), Black (with Black Cabinet), orWhite (with Matte White Cabinet) Acoustically Transparent ClothGrille
Net Speaker Dimensions with grille
20.3” H x12.6” W x 12.7” D (515.5mm x 320mm x 322.4mm)
Net Speaker Weight
Primary - 34.5 lbs (15.7kg), Secondary - 34.3 lbs (15.6kg)
Shipping Units of Measure
System Pairs
Gross Shipping Dimensions
25.59” H x 30.31” W x 16.46” D (650mm x770mm x 418mm)
Gross Shipping Weight
79.4 lbs (36.1 kg)
AC Input Voltage
100 - 240 VAC (+/-10%), 50/60Hz
